100kWh 50kW Commercial & Industrial Energy Storage Cabinet | LiFePO4 ESS

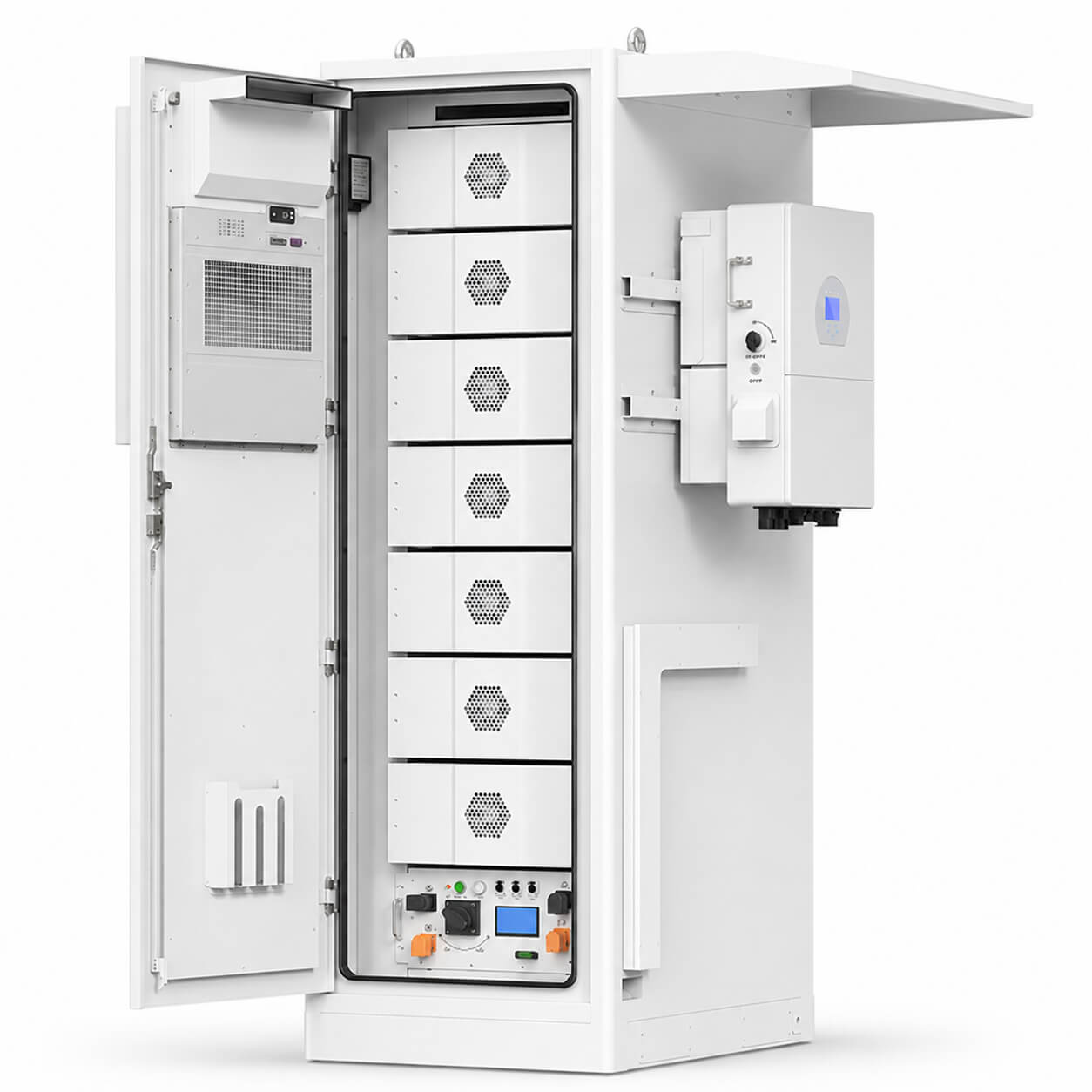

The GCB-E100 Commercial & Industrial Energy Storage Cabinet is an integrated 100kWh / 50kW energy storage solution designed for commercial and industrial applications.
The system integrates LiFePO4 battery modules, BMS, inverter, thermal management and fire protection into one compact cabinet, providing a reliable solution for peak shaving, solar energy storage, backup power and grid-connected energy management.
100kWh / 50kW integrated energy storage cabinet
Uses 314Ah LiFePO4 battery cells
7 battery modules connected in series
Rated battery voltage: 358.4V
Operating voltage range: 280–403V
50kW charging and discharging power
Three-phase four-wire grid connection
Rated grid voltage: AC380V / 50Hz
Integrated inverter
Integrated fire protection system
Air cooling with refrigeration, ventilation and heating
Supports RS485 and CAN communication
IP54 protection
System efficiency ≥ 90%
| Parameter | Specification |
|---|---|
| Model | GCB-E100 |
| System Type | 100kWh / 50kW |
| Battery Cell | LFP 314Ah |
| Battery Pack | 51.2V 314Ah / 280Ah |
| Rated Voltage | 358.4V |
| Rated Energy | 112.53kWh / 100.35kWh |
| Voltage Range | 280–403V |
| Rated Charge/Discharge Power | 50kW |
| Grid Type | Three-Phase Four-Wire |
| Rated Grid Voltage | AC380V |
| Grid Frequency | 50Hz |
| Dimensions | 1200 × 803 × 2375 mm |
| Weight | 1300 kg |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to 50°C |
| Cooling Method | Air Cooling |
| System Efficiency | ≥90% |
| Communication | RS485 / CAN |
Commercial & Industrial ESS / Solar PV Energy Storage / Peak Shaving / Backup Power / Microgrid / Energy Management
